MIL-DTL-28837C

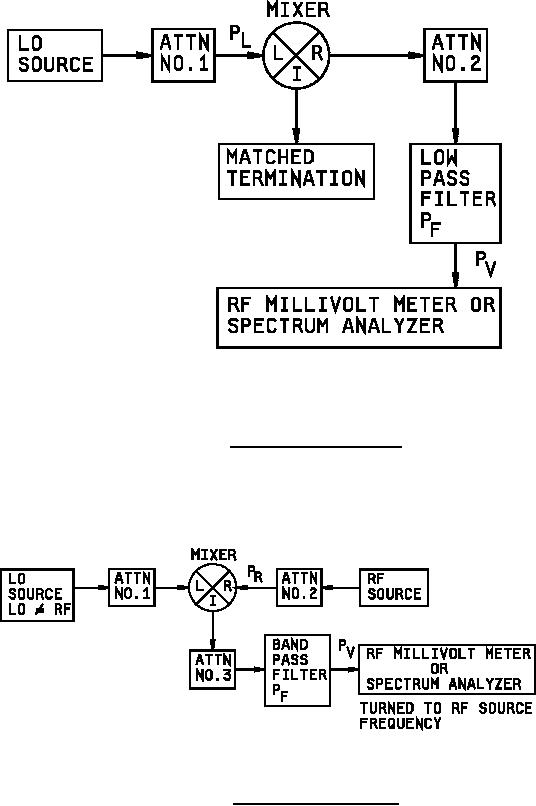

LO to RF isolation = (PL - PV - ATTN. #2 - PF) dB
FIGURE 4. LO to RF isolation test setup.
RF to IF isolation = (PR - PV - ATTN. #3 - PF) dB
FIGURE 5. RF to IF isolation test setup.
15
