MIL-DTL-28837/2D
Dimension
Ltr
Inches
mm
Min
Max
Min
Max
A
.550
.570
13.97
14.48
B
.175
.215
4.45
5.46
C
.510
.530
12.95
13.46
D
.180
.200
4.57
5.08
E
.017 DIA .019 DIA 0.43 DIA 0.48 DIA
F
.271
.291
6.88
7.39
G
.200
.220
5.08
5.59
H
.270
.290
6.86
7.37
J
.057 RAD .067 RAD 1.45 RAD 1.70 RAD
K
.085
.105
2.16
2.67
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Case is to be grounded.

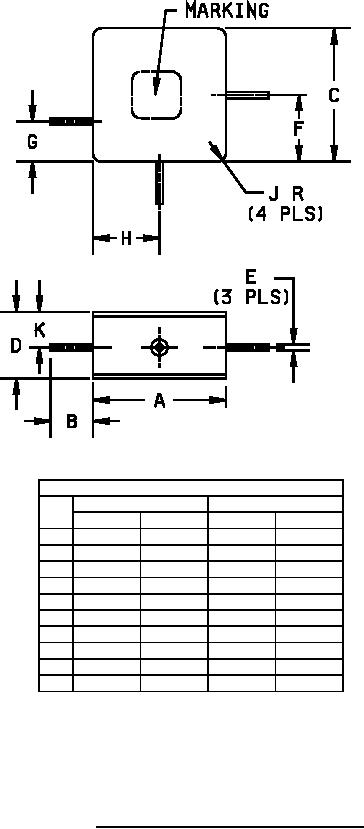

FIGURE 7. Outline drawing for mixers PIN M28837/2-13.
