MIL-DTL-28837/2D
Dimension
Ltr
Inches
mm
Min
Max
Min
Max
A
.790
.810
20.07
20.57
B
.175
.215
4.45
5.46
C
.580
.600
14.73
15.24
D
.250
.270
6.35
6.86
E
.017 DIA .019 DIA 0.43 DIA 0.48 DIA
F
.285
.305
7.24
7.75
G
.057 RAD .067 RAD 1.45 RAD 1.70 RAD
H
.390
.410
9.91
10.41
K
.120
.140
3.05
3.56
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Case is to be grounded.

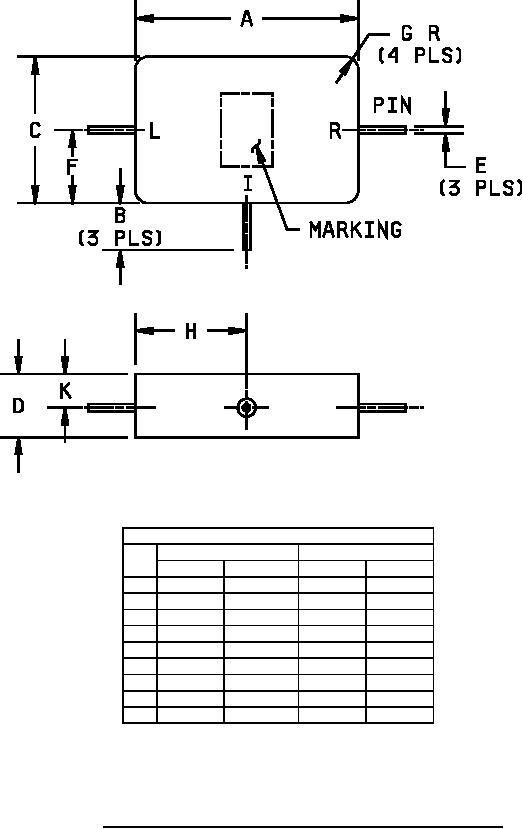

FIGURE 4. Outline drawing for mixers PIN M28837/2-14 through M28837/2-16.
