MIL-DTL-28837/2D
Dimension
Ltr
Inches
mm
Min
Max
Min
Max
A
.365
.405
9.27
10.29
B
.313
---
7.95
---
C
.49
.53
12.4
13.5
D
---
.150
---
3.81
E
.012 DIA .022 DIA 0.30 DIA 0.59 DIA
F
.340
.360
8.64
9.14
G
.240
.260
6.10
6.60
H
.090
.110
2.29
2.79
J
.075
.085
1.91
2.16
K
.075 NOM
1.91 NOM
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Pins not marked are grounded.
4. Pins without internal connections (dummy) are permitted provided the pins are
labeled with a "D".

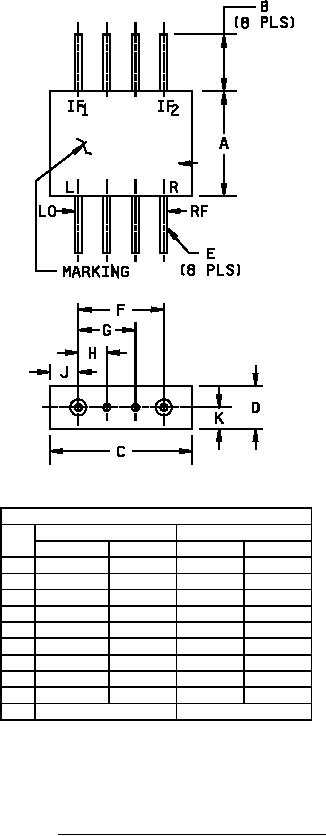

FIGURE 2. Outline drawing for mixers PIN M28837/2-05.
