INCH-POUND
MIL-DTL-28837/2D
5 July 2012
SUPERSEDING
MIL-DTL-28837/2C
30 October 2001
DETAIL SPECIFICATION SHEET
MIXER STAGES, RADIO FREQUENCY, DOUBLE BALANCED, SOLDER LEADS
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification and MIL-DTL-28837.
Dimension
Ltr
Inches
mm
Min
Max
Min
Max
A
.365
.405
9.27
10.29
B
.313
---
7.95
---
C
.49
.53
12.4
13.5
D
---
.150
---
3.81
E .012 DIA .022 DIA 0.30 DIA 0.59 DIA
F
.340
.360
8.64
9.14
G
.240
.260
6.10
6.60
H
.090
.110
2.29
2.79
J
.075
.085
1.91
2.16
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general
information only.
3. Pins not marked are grounded.
4. Pins without internal connections (dummy) are
permitted provided the pins are labeled with a "D".

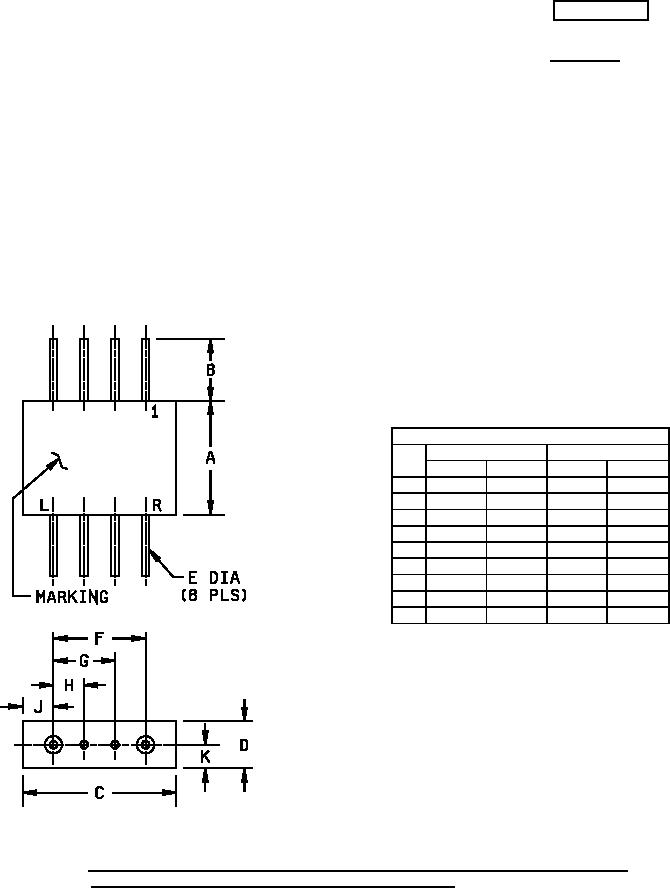

FIGURE 1. Outline drawing for mixers PIN M28837/2-01, M28837/2-02, M28837/2-03, M28837/02-04,
M28837/2-07, M28837/2-08, M28837/2-09 and M28837/2-10.
AMSC N/A
FSC 5895
