MIL-DTL-28837/1D
Dimension
Ltr
Inches
mm
Min
Max
Min
Max
A
.400
.425
10.16
10.80
B
.165
.205
4.19
5.21
C .028 DIA .032 DIA 0.71 DIA 0.81 DIA
D
.195
.205
4.95
5.21
E
.195
.205
4.95
5.21
F
.080
.110
2.03
2.79
G
.370
.400
9.40
10.16
H
.080
.110
2.03
2.79
J
.770
.800
19.60
20.32
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Pin number 1 shall have a contrasting color insulator, all pin numbers are to be marked on sides of case
adjacent to the pins. The marking on the header is for reference only.
Termination for PIN M28837/01-04
and M28837/01-12
LO - Pins 1 and 5
RF - Pins 4 and 8
IF is formed by externally
connecting pins 3 and 7 together
for the grounded side and using
pins 2 and 6 for the ground side.

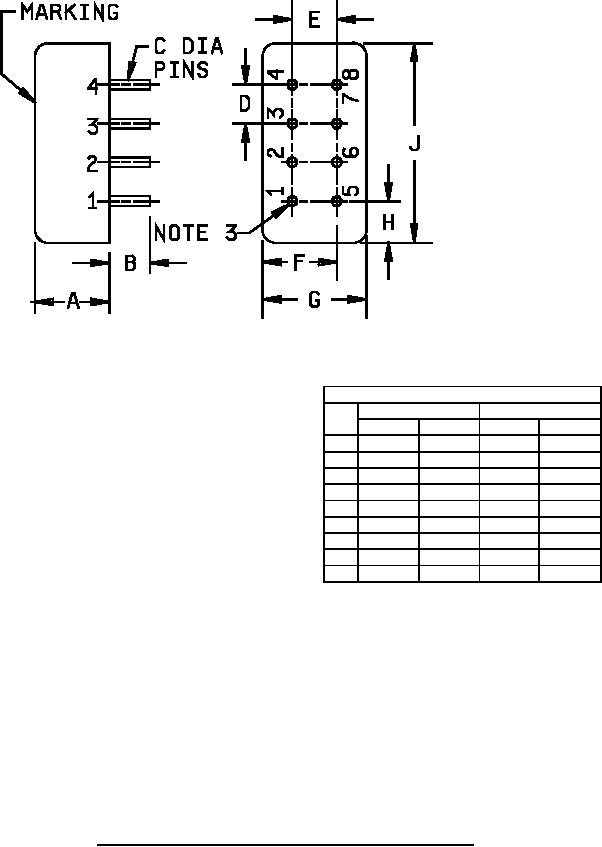

FIGURE 3. Outline drawing for mixers PIN M28837/1-04 and M28837/1-12.
