INCH-POUND
MIL-DTL-28837/1D
5 July 2012
SUPERSEDING
MIL-DTL-28837/1C
30 October 2001
DETAIL SPECIFICATION SHEET
MIXER STAGES, RADIO FREQUENCY, DOUBLE BALANCED, PIN
PLUG-IN TERMINATION
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification and MIL-DTL-28837.
Dimension
Ltr
Inches
mm
Min
Max
Min
Max
A
.190
.210
4.83
5.33
B
.165
.205
4.19
5.21
C .028 DIA .032 DIA 0.71 DIA 0.81 DIA
D
.195
.205
4.95
5.21
E
.195
.205
4.95
5.21
F
.080
.110
2.03
2.79
G
.370
.400
9.40
10.16
H
.080
.110
2.03
2.79
J
.770
.800
19.60
20.32
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Pin number 1 shall have a contrasting color insulator, all pin numbers are to be marked on sides of case
adjacent to the pins. The marking on the header is for reference only.
Termination for PIN M28837/01-01
Termination for PIN M28837/01-02
and M28837/01-13
and M28837/1-14
LO - Pins 1 and 5
LO - 1 and 5
RF - Pins 4 and 8
RF - Pins 4 and 8
IF is formed by externally
Pins 2, 4, and 6 are internally
connecting pins 2 and 6 together
connected to case.
and 3 and 7 together
IF is formed by externally
connecting pins 3 and 7 together
and using the case for reference.

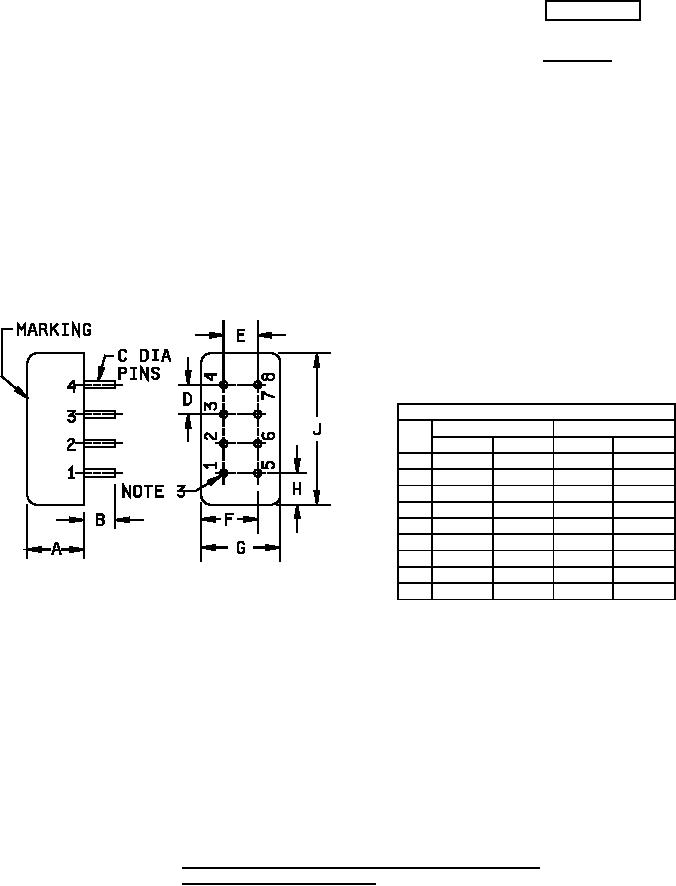

FIGURE 1. Outline drawing for mixers PIN M28837/1-01, M28837/1-02,
M28837/1-13, and M28837/1-14.
